SKU : RS_OMVCS2024-01
Original price was: 4,800.00৳ .4,500.00৳ Current price is: 4,500.00৳ .
The LCD Shield gives your OpenMV Cam the ability to display what it sees on-the-go while not connected to your computer. It features a 1.8″ 128×160 16-bpp (RGB565) TFT LCD display with a controllable backlight. Your OpenMV Cam’s firmware has built-in support for controlling the LCD Shield using the SPI Display Class.
1 in stock
Your orders are shipped seamlessly between countries
You have the right to return your orders within 30 days.
Your payments are secure with our private security network.

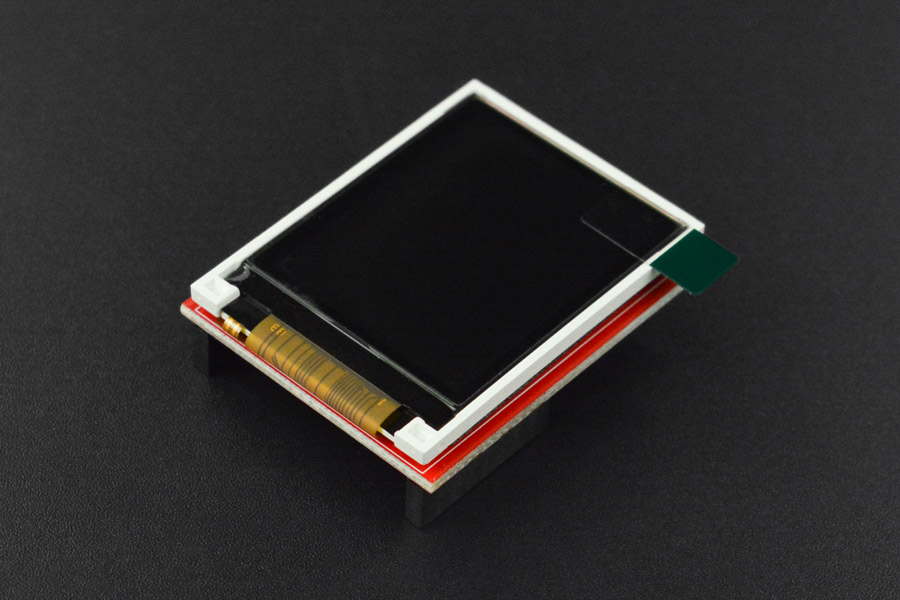

OpenMV CAM LCD Expansion Board is an LCD Expansion Board customized for OpenMV CAM. It allows your OpenMV CAM to display what it sees on-the-go without connecting to your computer. The OpenMV CAM LCD Expansion Board features a TFT LCD display with RGB color lights and a controllable backlight. It can clearly display the picture captured by OpenMV CAM.
Pins function
| P0 | SPI data in |
| P1 | NC |
| P2 | SPI clock. |
| P3 | SPI chip select (10K pull-up) |
| P4 | NC |
| P5 | NC |
| P6 | LED control. |
| 3.3 | 3.3v input |
| RST | NC |
| BOOT | NC |
| SYN | NC |
| P9 | NC |
| P8 | RS |
| P7 | RESET |
| VIN | NC |
| GND | GND |
Idle Backlight Off: < 1mA @ 3.3V (> 100mA w/ Cam)
Idle Backlight On: 30mA @ 3.3V (130mA w/ Cam)
Active Backlight Off: 10mA @ 3.3V (150mA w/ Cam)
Active Backlight On: 40mA @ 3.3V (180mA w/ Cam)
Storage: -30°C to 80°C
Operating: -20°C to 70°C
| Weight | 0.025 kg |
|---|---|
| Dimensions | 48 × 38 × 13 cm |
