Unlock the true potential of your MINDSTORMS EV3 hub with the EV3 Smart Camera Breakout board. Seamlessly integrate third-party electronics, and especially AI cameras like OpenMV and Huskylens, to bring unprecedented capabilities to your robot creations.

Key Features:

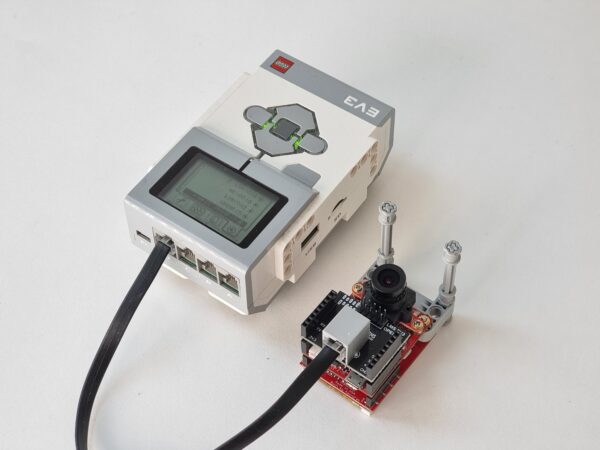

• Plug & Play: Designed for ease of use, simply connect your OpenMV or Huskylens camera to this breakout board and interface with the EV3 hub.
• Universal Compatibility: While optimized for smart AI Cameras, the board also allows integration with a variety of third-party electronics.
• High-quality PCB: Ensures longevity and stable connections for consistent performance.
• Connectivity: Leaves room for stacking many OpenMV add-on boards. Exposes all leads as male and female pins.
• Easy to program with Micropython libraries: We keep a public GitHub repository with libraries that make it easy to communicate with external electronics.
• Pre-soldered: No soldering required, you can use it right away!
• OpenMV Shield Dimensions: This board has the size of an openMV Shield and allows you to stack more shields, including the LCD display. Works on all OpenMV models, even the new OpenMV RT.

Use Cases

1. AI-powered Robot: Use the breakout board to create an EV3 robot that can recognize and respond to visual cues, thanks to the connected AI camera.

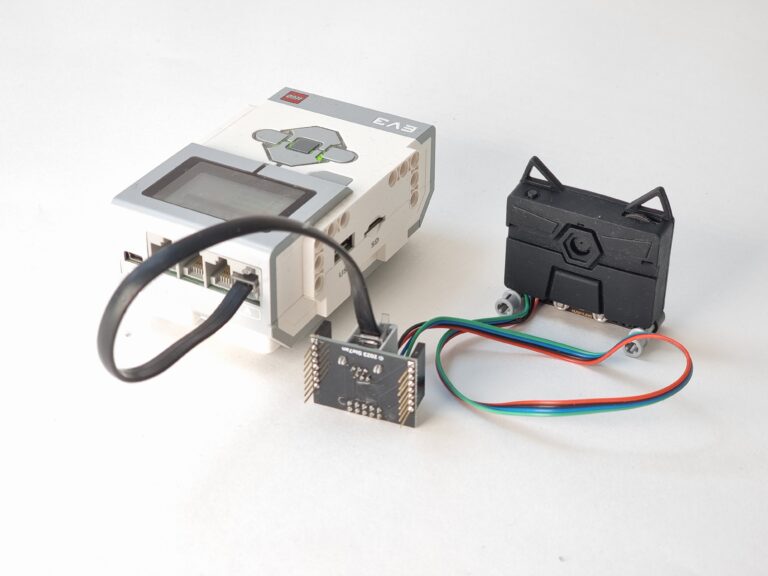

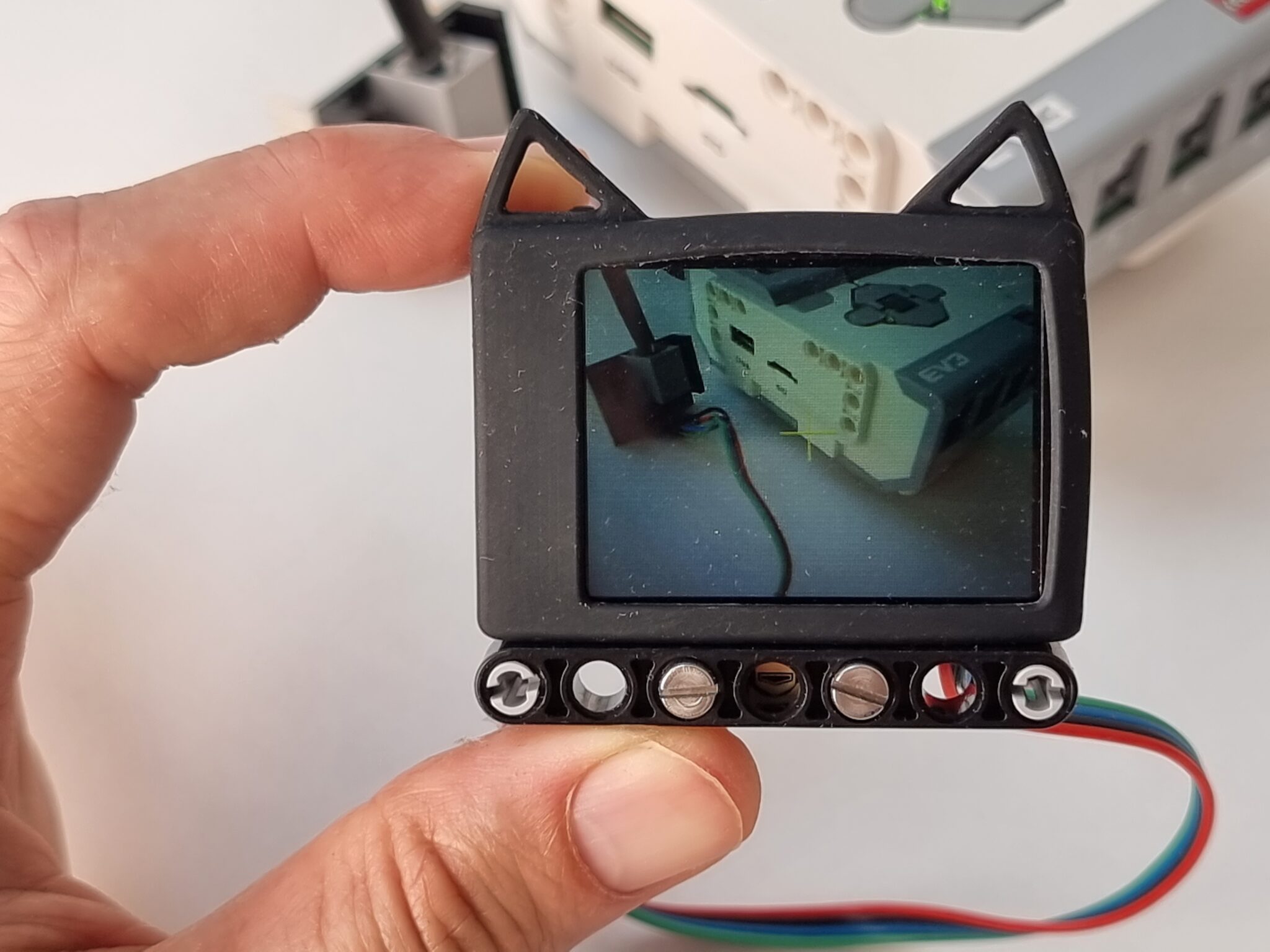

2. Automated Sorting System: With a Huskylens camera connected, your EV3 system can sort bricks by color, shape, or even custom patterns you design!
3. Interactive Maze Runner: Design a maze and have your EV3 robot navigate it using visual cues captured by the OpenMV camera.
4. Advanced Security System: Use the AI camera’s facial recognition feature to design a MINDSTORMS security system that grants access only to authorized personnel.

In the Box

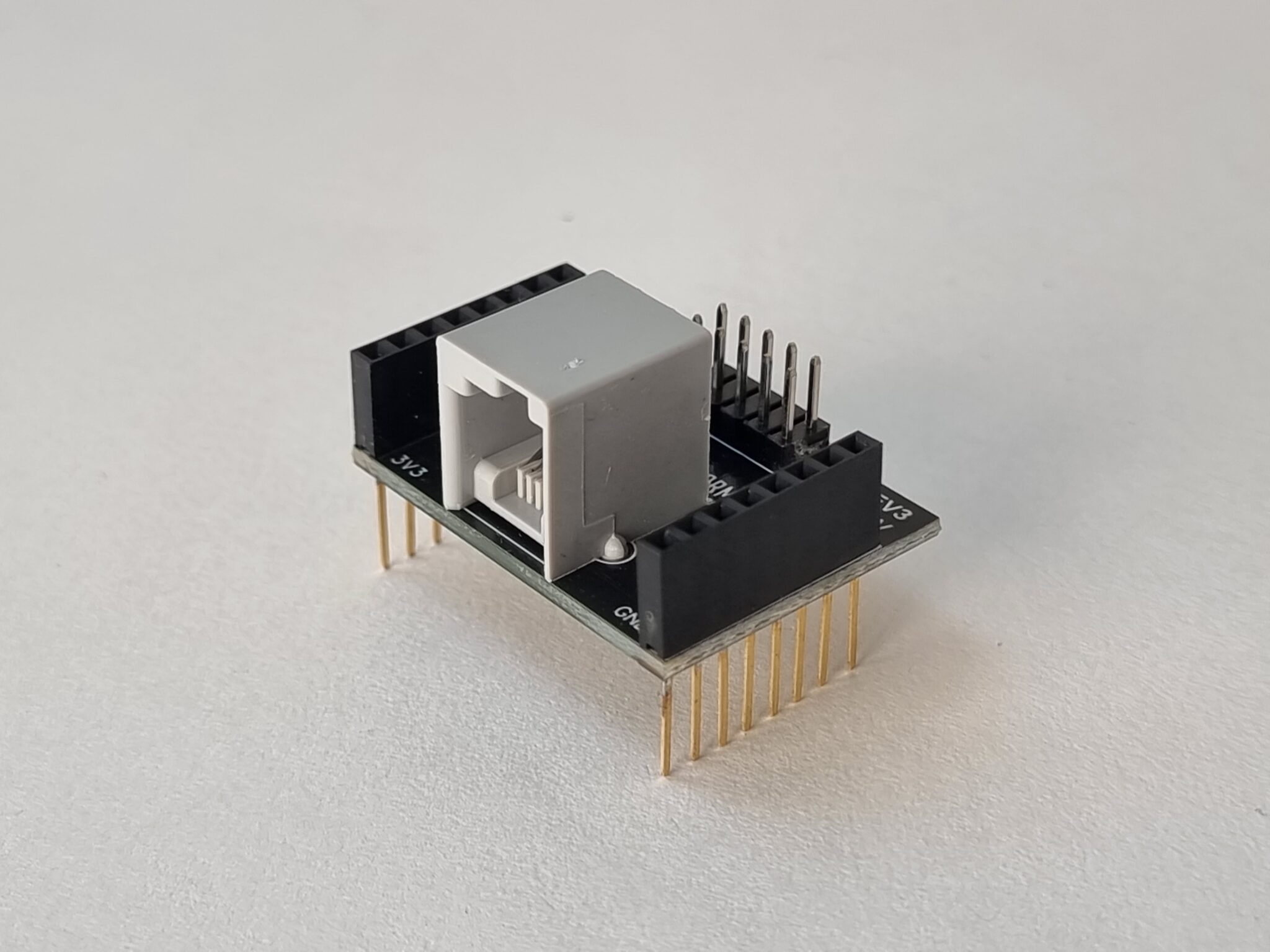

• 1x EV3 Smart Camera Breakout Board

Specifications:

• Dimensions: 35 x 26 x 30 mm (width, length, height)
• Compatibility: MINDSTORMS EV3 hub, OpenMV, Huskylens, and other third-party electronics.

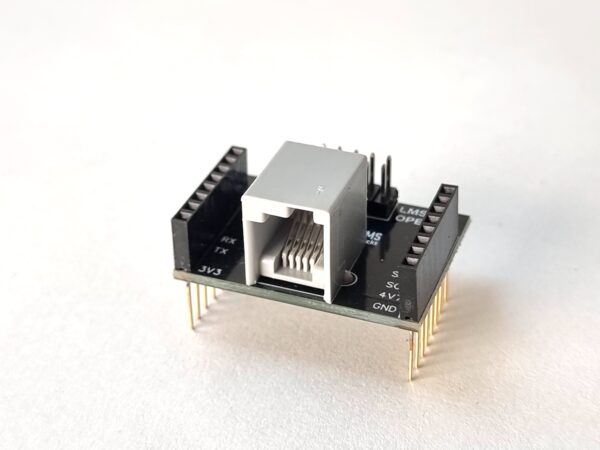

• Connectors: RJ-12 right (MINDSTORMS), 0.1″ (2.54mm) headers (Not Included).

Shipping

Ships Countrywide.

Additional Information

• • Visit the blog at antonsmindstorms.com for inspiration, use cases, and step-by-step guides.
  • Documentation is at docs.antonsmindstorms.com.
